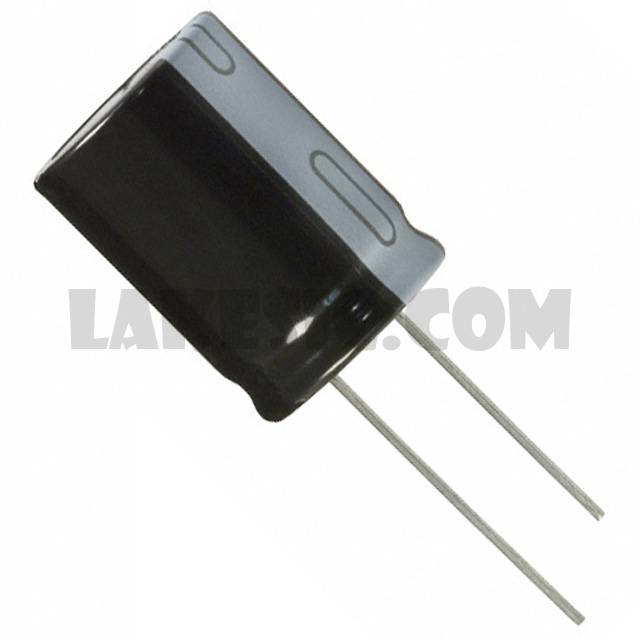

ESMG630ELL222MP30S


ESMG630ELL222MP30S

Part NumberESMG630ELL222MP30S

Manufacturer

Description

Datasheet

Package / CaseRadial, Can

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

ESMG630ELL222MP30S - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package250
ManufacturerUnited Chemi-Con
SeriesSMG
PackagingBulk
Part StatusLast Time Buy
Capacitance2200µF
Tolerance±20%
Voltage - Rated63V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.2000 Hrs @ 85°C
Operating Temperature-40°C ~ 85°C
PolarizationPolar
Ratings-
ApplicationsGeneral Purpose
Ripple Current @ Low Frequency2.19A @ 120Hz
Ripple Current @ High Frequency2.628A @ 100kHz
Lead Spacing0.394" (10.00mm)
Size / Dimension0.866" Dia (22.00mm)
Height - Seated (Max)1.240" (31.50mm)
Surface Mount Land Size-
Mounting TypeThrough Hole
Package / CaseRadial, Can
