FDMC86183

FDMC86183

Part NumberFDMC86183

ManufacturerON Semiconductor

DescriptionMOSFET N-CH 100V 47A 8PQFN

DatasheetFDMC86183

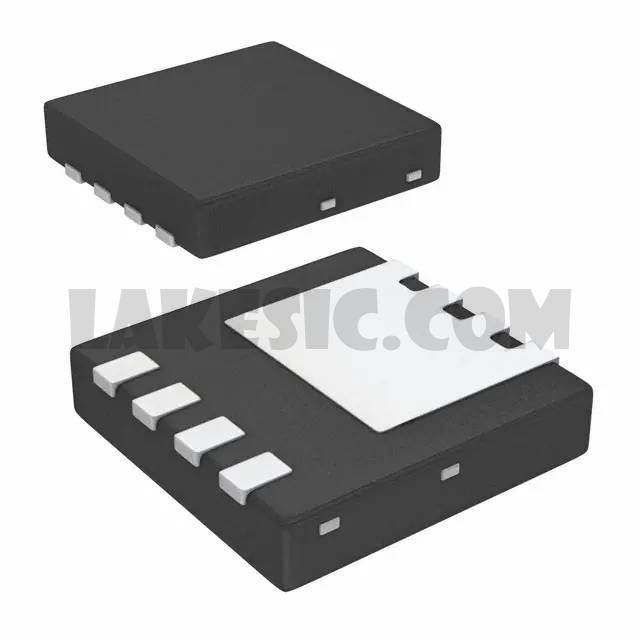

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 47A (Tc) 52W (Tc) Surface Mount 8-PQFN (3.3x3.3), Power33

To learn about the specification of FDMC86183, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMC86183 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMC86183.
We are offering FDMC86183 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMC86183 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	FDMC86183
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	12.8mOhm @ 16A, 10V
Vgs(th) (Max) @ Id	4V @ 90µA
Gate Charge (Qg) (Max) @ Vgs	21nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1515pF @ 50V
FET Feature	-
Power Dissipation (Max)	52W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-PQFN (3.3x3.3), Power33
Package / Case	8-PowerWDFN
