FGY120T65SPD-F085

FGY120T65SPD-F085

Part NumberFGY120T65SPD-F085

ManufacturerON Semiconductor

DescriptionIGBT 650V 240A 882W TO-247

DatasheetFGY120T65SPD_F085 Datasheet

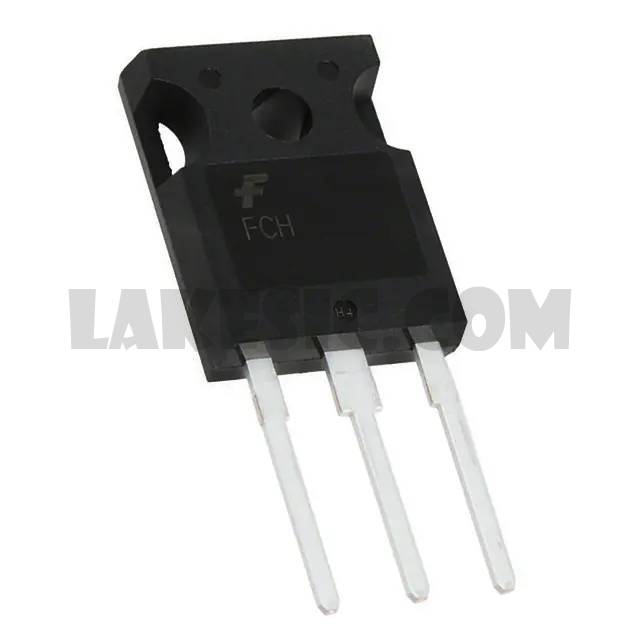

Package / CaseTO-247-3 Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench Field Stop 650V 240A 882W Through Hole PowerTO-247-3

To learn about the specification of FGY120T65SPD-F085, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGY120T65SPD-F085 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGY120T65SPD-F085.
We are offering FGY120T65SPD-F085 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FGY120T65SPD-F085 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGY120T65SPD_F085 Datasheet
Standard Package	450
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	240A
Current - Collector Pulsed (Icm)	378A
Vce(on) (Max) @ Vge, Ic	1.85V @ 15V, 120A
Power - Max	882W
Switching Energy	6.8µJ (on), 3.5µJ (off)
Input Type	Standard
Gate Charge	162nC
Td (on/off) @ 25°C	53ns/102ns
Test Condition	400V, 120A, 5Ohm, 15V
Reverse Recovery Time (trr)	123ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3 Exposed Pad
Supplier Device Package	PowerTO-247-3
