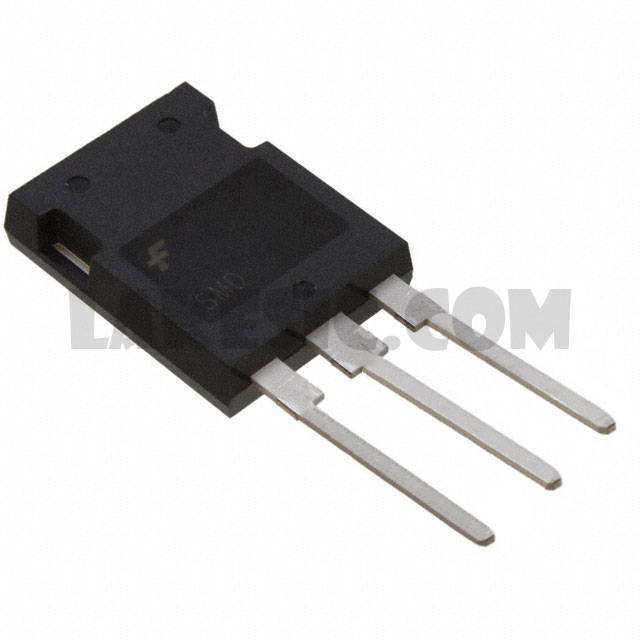

FGY75N60SMD

FGY75N60SMD

Part NumberFGY75N60SMD

ManufacturerON Semiconductor

DescriptionIGBT 600V 150A 750W POWER-247

DatasheetFGY75N60SMD

Package / CaseTO-247-3 Variant

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Field Stop 600V 150A 750W Through Hole PowerTO-247-3

To learn about the specification of FGY75N60SMD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FGY75N60SMD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FGY75N60SMD.
We are offering FGY75N60SMD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FGY75N60SMD - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	FGY75N60SMD
Standard Package	450
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	Field Stop
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	150A
Current - Collector Pulsed (Icm)	225A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 75A
Power - Max	750W
Switching Energy	2.3mJ (on), 770µJ (off)
Input Type	Standard
Gate Charge	248nC
Td (on/off) @ 25°C	24ns/136ns
Test Condition	400V, 75A, 3Ohm, 15V
Reverse Recovery Time (trr)	55ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3 Variant
Supplier Device Package	PowerTO-247-3
