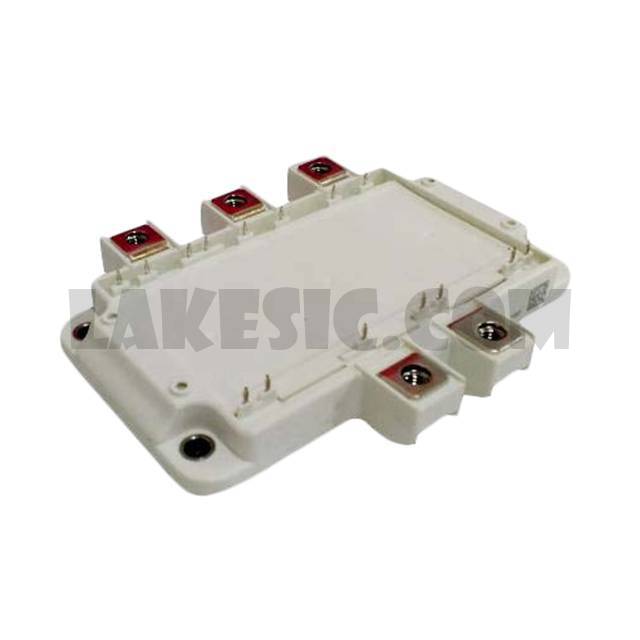

GSID300A125S5C1

GSID300A125S5C1

Part NumberGSID300A125S5C1

ManufacturerGlobal Power Technologies Group

DescriptionIGBT MODULE 1250V 600A CHASSIS

DatasheetGSID300A125S5C1 Preliminary

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Three Level Inverter 1250V 600A 2500W Chassis Mount Module

To learn about the specification of GSID300A125S5C1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add GSID300A125S5C1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of GSID300A125S5C1.
We are offering GSID300A125S5C1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

GSID300A125S5C1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	GSID300A125S5C1 Preliminary
Standard Package	10
Manufacturer	Global Power Technologies Group
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Three Level Inverter
Voltage - Collector Emitter Breakdown (Max)	1250V
Current - Collector (Ic) (Max)	600A
Power - Max	2500W
Vce(on) (Max) @ Vge, Ic	2.4V @ 15V, 300A
Current - Collector Cutoff (Max)	1mA
Input Capacitance (Cies) @ Vce	30.8nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
