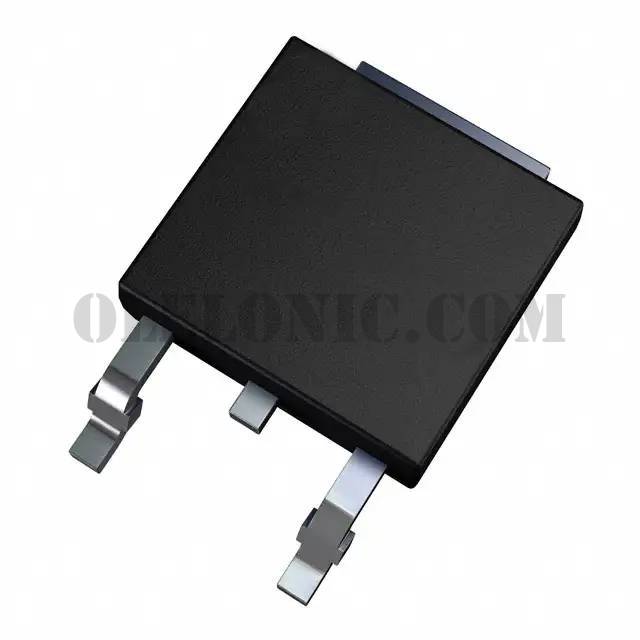

Part Number HGTD1N120BNS9A
Description IGBT 1200V 5.3A 60W TO252AA
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT NPT 1200V 5.3A 60W Surface Mount TO-252AA
To learn about the specification of HGTD1N120BNS9A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add HGTD1N120BNS9A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of HGTD1N120BNS9A.
We are offering HGTD1N120BNS9A for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
HGTD1N120BNS9A - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet HGTD1N120BNS, HGTP1N120BN
Standard Package 1
Manufacturer ON Semiconductor
Series -
Packaging Cut Tape (CT)
Part Status Active
IGBT Type NPT
Voltage - Collector Emitter Breakdown (Max) 1200V
Current - Collector (Ic) (Max) 5.3A
Current - Collector Pulsed (Icm) 6A
Vce(on) (Max) @ Vge, Ic 2.9V @ 15V, 1A
Power - Max 60W
Switching Energy 70µJ (on), 90µJ (off)
Input Type Standard
Gate Charge 14nC
Td (on/off) @ 25°C 15ns/67ns
Test Condition 960V, 1A, 82Ohm, 15V
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package TO-252AA
Base Part Number HGTD1N120
