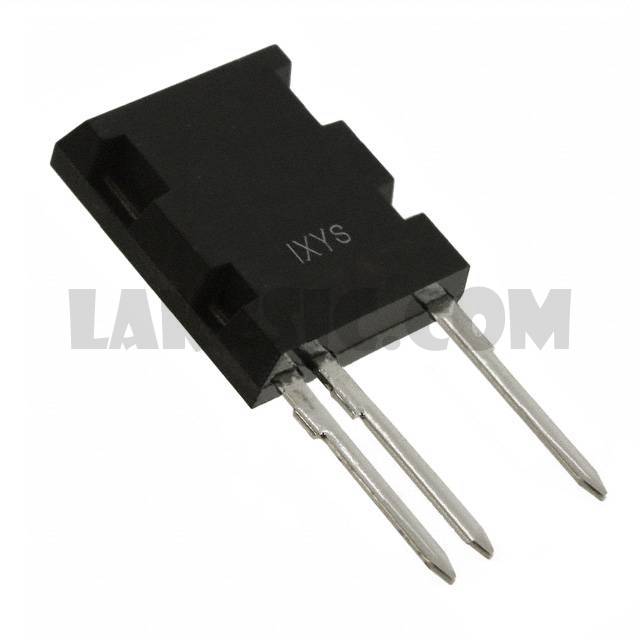

IXEL40N400
IXEL40N400
Part Number IXEL40N400
Manufacturer IXYS
Description IGBT 4000V 90A 380W ISOPLUSI5
Package / Case ISOPLUSi5-Pak™
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description IGBT 4000V 90A 380W Through Hole ISOPLUSi5-Pak™
To learn about the specification of IXEL40N400, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXEL40N400 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXEL40N400.
We are offering IXEL40N400 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXEL40N400 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXEL40N400
Standard Package 25
Manufacturer IXYS
Series -
Packaging Tube
Part Status Active
IGBT Type -
Voltage - Collector Emitter Breakdown (Max) 4000V
Current - Collector (Ic) (Max) 90A
Current - Collector Pulsed (Icm) 400A
Vce(on) (Max) @ Vge, Ic 3.2V @ 15V, 40A
Power - Max 380W
Switching Energy 55mJ (on), 165mJ (off)
Input Type Standard
Gate Charge 275nC
Td (on/off) @ 25°C 160ns/630ns
Test Condition 2800V, 40A, 33Ohm, 15V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case ISOPLUSi5-Pak™
Supplier Device Package ISOPLUSi5-Pak™
