Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	HGTG20N60A4D
Standard Package	450
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Not For New Designs
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	70A
Current - Collector Pulsed (Icm)	280A
Vce(on) (Max) @ Vge, Ic	2.7V @ 15V, 20A
Power - Max	290W
Switching Energy	105µJ (on), 150µJ (off)
Input Type	Standard
Gate Charge	142nC
Td (on/off) @ 25°C	15ns/73ns
Test Condition	390V, 20A, 3Ohm, 15V
Reverse Recovery Time (trr)	35ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole

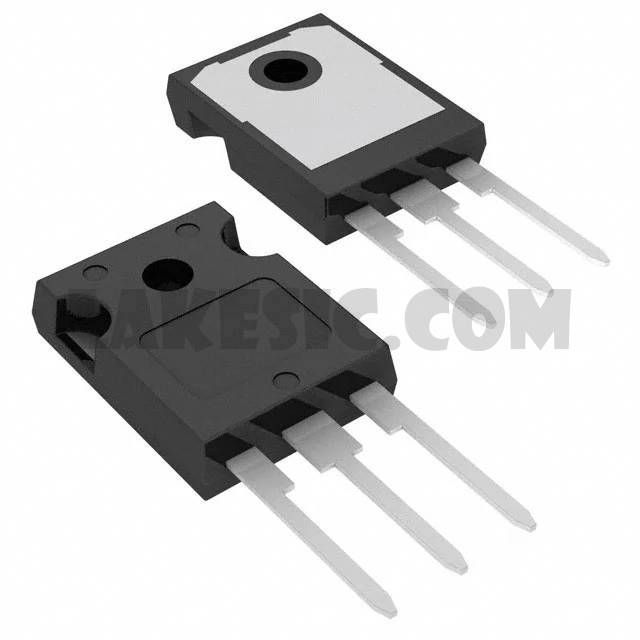

Package / Case	TO-247-3
Supplier Device Package	TO-247-3
Base Part Number	HGTG20N60
