Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGW(A)8M120DF3 Datasheet
Standard Package	30
Manufacturer	STMicroelectronics
Series	M
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	16A
Current - Collector Pulsed (Icm)	32A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 8A
Power - Max	167W
Switching Energy	390µJ (on), 370µJ (Off)
Input Type	Standard
Gate Charge	32nC
Td (on/off) @ 25°C	20ns/126ns
Test Condition	600V, 8A, 33Ohm, 15V
Reverse Recovery Time (trr)	103ns
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

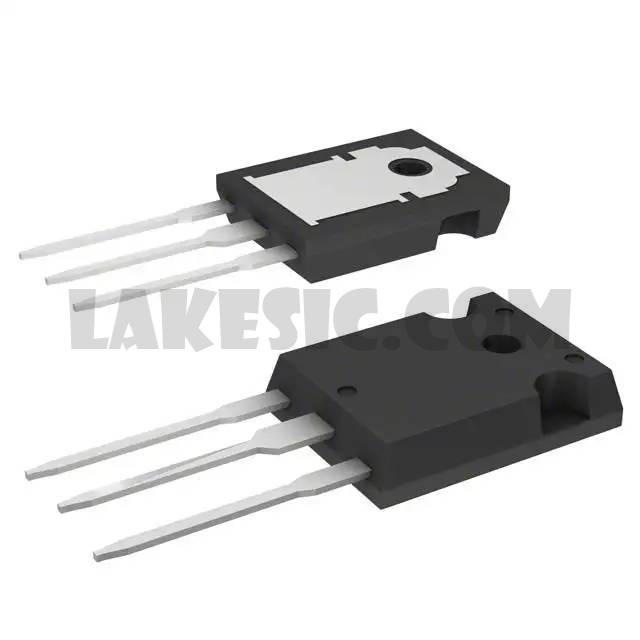

Package / Case	TO-247-3
Supplier Device Package	TO-247-3
