IAUC120N04S6L008ATMA1


IAUC120N04S6L008ATMA1

Part NumberIAUC120N04S6L008ATMA1

Manufacturer

Description

Datasheet

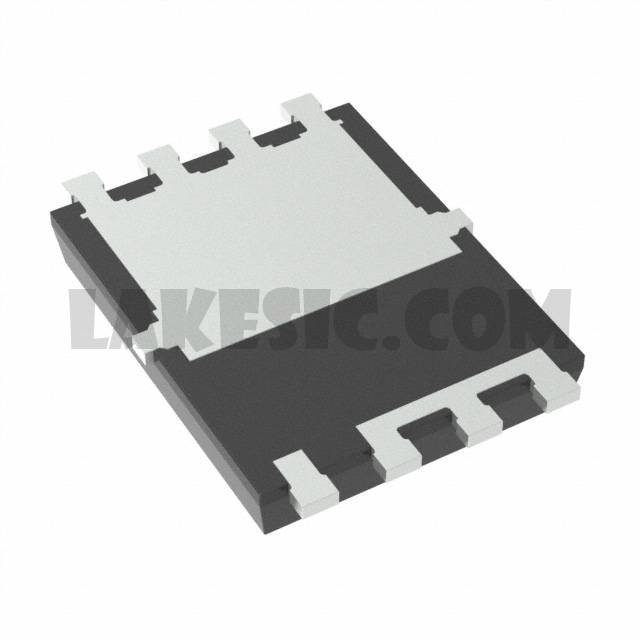

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

IAUC120N04S6L008ATMA1 - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet
Standard Package1
ManufacturerInfineon Technologies
SeriesAutomotive, AEC-Q101, OptiMOS™
PackagingCut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40V
Current - Continuous Drain (Id) @ 25°C120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs0.8mOhm @ 60A, 10V
Vgs(th) (Max) @ Id2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs140nC @ 10V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds7910pF @ 25V
FET Feature-
Power Dissipation (Max)150W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TDSON-8-33
Package / Case8-PowerTDFN
