Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

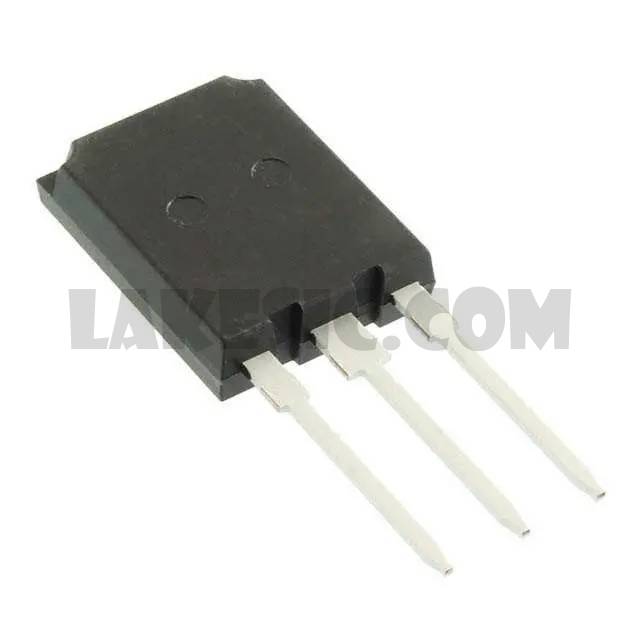

Datasheet	IKQ75N120CS6
Standard Package	240
Manufacturer	Infineon Technologies
Series	TrenchStop™
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	150A
Current - Collector Pulsed (Icm)	300A
Vce(on) (Max) @ Vge, Ic	2.15V @ 15V, 75A
Power - Max	880W
Switching Energy	5.15mJ (on), 2.95mJ (off)
Input Type	Standard
Gate Charge	530nC
Td (on/off) @ 25°C	34ns/300ns
Test Condition	600V, 75A, 4Ohm, 15V
Reverse Recovery Time (trr)	440ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	PG-TO247-3-46
