IXBF20N360
IXBF20N360

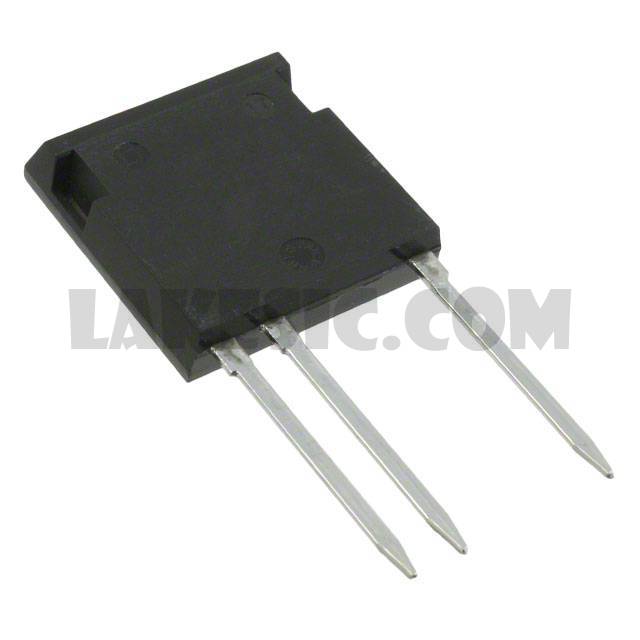

Part Number IXBF20N360 Manufacturer IXYS Description IGBT 3600V 45A ISOPLUS I4PAK Package / Case i4-Pac™-5Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 3600V 45A 230W Through Hole ISOPLUS i4-PAC™
To learn about the specification of IXBF20N360, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXBF20N360 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXBF20N360.
We are offering IXBF20N360 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXBF20N360 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXBF20N360 Standard Package 25 Manufacturer IXYS Series BIMOSFET™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 3600V Current - Collector (Ic) (Max) 45A Current - Collector Pulsed (Icm) 220A Vce(on) (Max) @ Vge, Ic 3.4V @ 15V, 20A Power - Max 230W Switching Energy 15.5mJ (on), 4.3mJ (off) Input Type Standard Gate Charge 43nC Td (on/off) @ 25°C 18ns/238ns Test Condition 1500V, 20A, 10Ohm, 15V Reverse Recovery Time (trr) 1.7µs Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case i4-Pac™-5 Supplier Device Package ISOPLUS i4-PAC™
