IKW40N120T2FKSA1
IKW40N120T2FKSA1

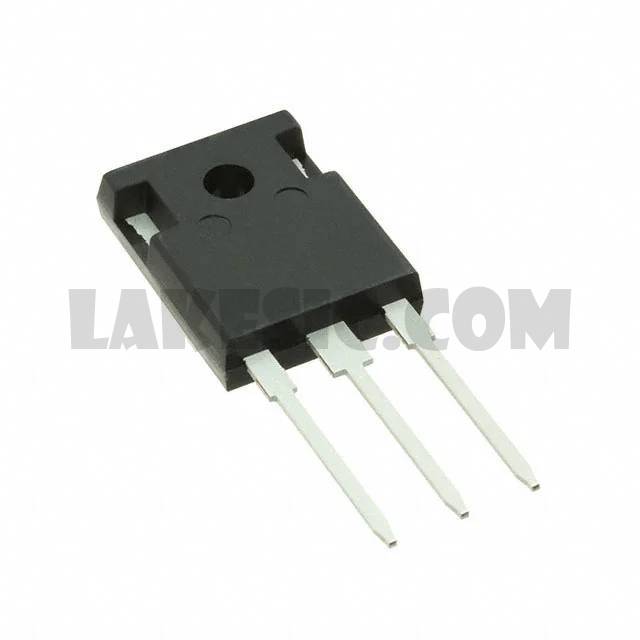

Part Number IKW40N120T2FKSA1 Description IGBT 1200V 75A 480W TO247-3 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench 1200V 75A 480W Through Hole PG-TO247-3
To learn about the specification of IKW40N120T2FKSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IKW40N120T2FKSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IKW40N120T2FKSA1.
We are offering IKW40N120T2FKSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IKW40N120T2FKSA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IKW40N120T2 Standard Package 240 Manufacturer Infineon Technologies Series TrenchStop® Packaging Tube Part Status Active IGBT Type Trench Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 75A Current - Collector Pulsed (Icm) 160A Vce(on) (Max) @ Vge, Ic 2.2V @ 15V, 40A Power - Max 480W Switching Energy 5.25mJ Input Type Standard Gate Charge 192nC Td (on/off) @ 25°C 33ns/314ns Test Condition 600V, 40A, 12Ohm, 15V Reverse Recovery Time (trr) 258ns Operating Temperature -40°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package PG-TO247-3
