IPB030N08N3GATMA1

IPB030N08N3GATMA1

Part NumberIPB030N08N3GATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 80V 160A TO263-7

DatasheetIPB030N08N3 G

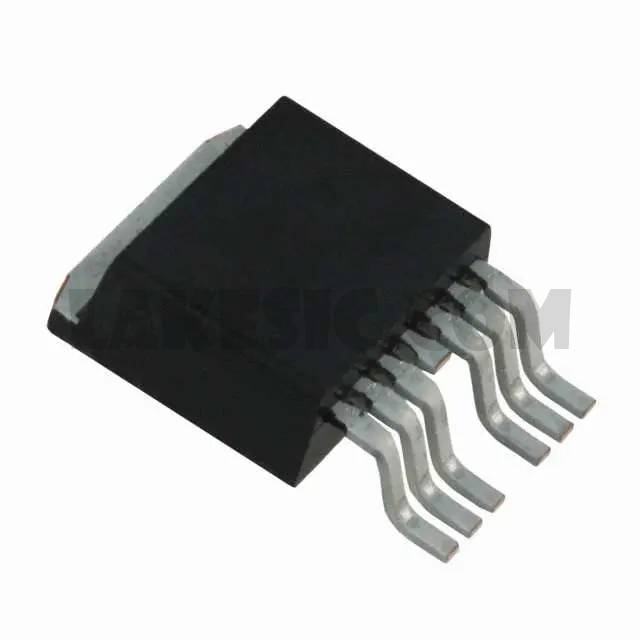

Package / CaseTO-263-7, D²Pak (6 Leads + Tab)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 160A (Tc) 214W (Tc) Surface Mount PG-TO263-7

To learn about the specification of IPB030N08N3GATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPB030N08N3GATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPB030N08N3GATMA1.
We are offering IPB030N08N3GATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPB030N08N3GATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPB030N08N3 G
Standard Package	1000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	160A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.5V @ 155µA
Gate Charge (Qg) (Max) @ Vgs	117nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8110pF @ 40V
FET Feature	-
Power Dissipation (Max)	214W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TO263-7
Package / Case	TO-263-7, D²Pak (6 Leads + Tab)
