IPG20N04S4L08ATMA1

Part NumberIPG20N04S4L08ATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET 2N-CH 8TDSON

DatasheetIPG20N04S4L-08

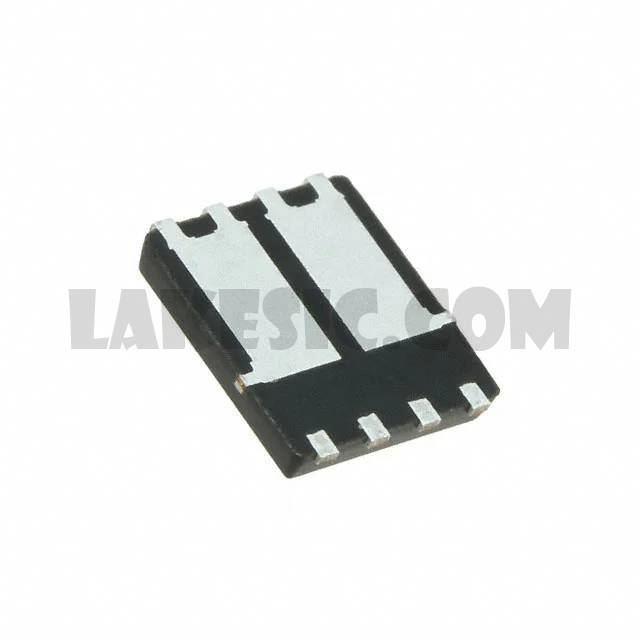

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 40V 20A 54W Surface Mount PG-TDSON-8-4

To learn about the specification of IPG20N04S4L08ATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPG20N04S4L08ATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPG20N04S4L08ATMA1.
We are offering IPG20N04S4L08ATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPG20N04S4L08ATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	IPG20N04S4L-08
Standard Package	5000
Manufacturer	Infineon Technologies
Series	Automotive, AEC-Q101, OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	20A
Rds On (Max) @ Id, Vgs	8.2mOhm @ 17A, 10V
Vgs(th) (Max) @ Id	2.2V @ 22µA
Gate Charge (Qg) (Max) @ Vgs	39nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	3050pF @ 25V
Power - Max	54W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	PG-TDSON-8-4
