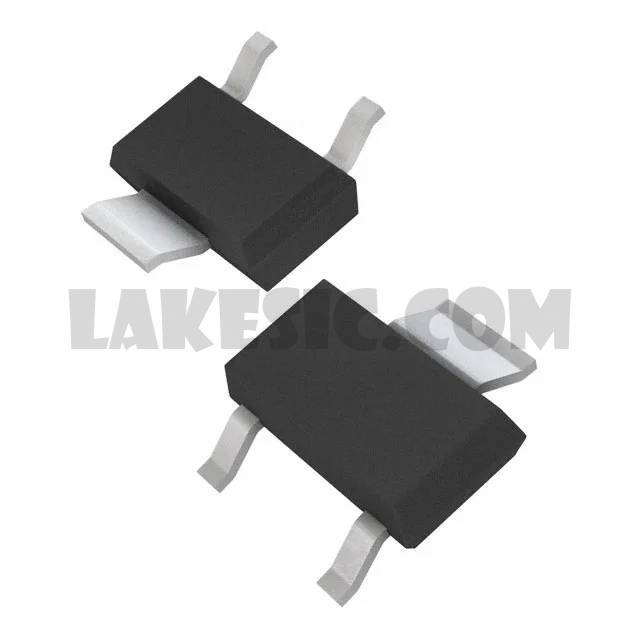

IPN70R900P7SATMA1

IPN70R900P7SATMA1

Part NumberIPN70R900P7SATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CHANNEL 700V 6A SOT223

DatasheetIPN70R900P7S

Package / CaseTO-261-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 700V 6A (Tc) 6.5W (Tc) Surface Mount PG-SOT223

To learn about the specification of IPN70R900P7SATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IPN70R900P7SATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IPN70R900P7SATMA1.
We are offering IPN70R900P7SATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IPN70R900P7SATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IPN70R900P7S
Standard Package	3000
Manufacturer	Infineon Technologies
Series	CoolMOS™ P7
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	700V
Current - Continuous Drain (Id) @ 25°C	6A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	900mOhm @ 1.1A, 10V
Vgs(th) (Max) @ Id	3.5V @ 60µA
Gate Charge (Qg) (Max) @ Vgs	6.8nC @ 10V
Vgs (Max)	±16V
Input Capacitance (Ciss) (Max) @ Vds	211pF @ 400V
FET Feature	-
Power Dissipation (Max)	6.5W (Tc)
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-SOT223
Package / Case	TO-261-3
