IRF830ALPBF

IRF830ALPBF

Part NumberIRF830ALPBF

ManufacturerVishay Siliconix

DescriptionMOSFET N-CH 500V 5A TO262-3

DatasheetIRF830AS,AL, SiHF830AS,AL

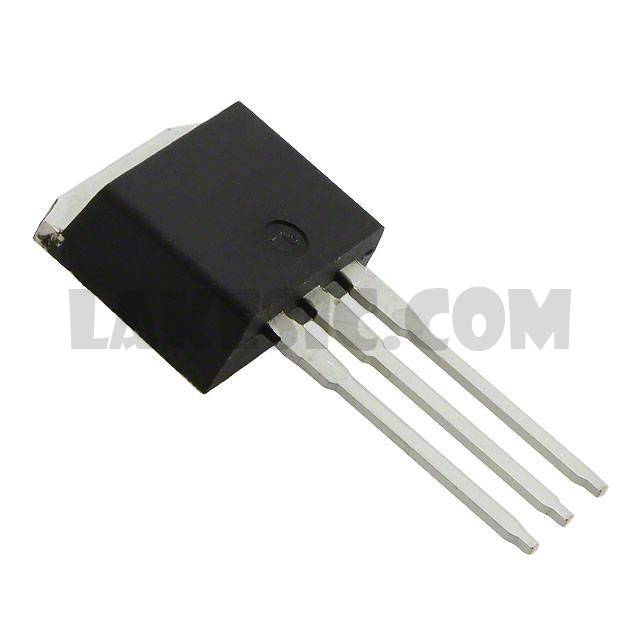

Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 500V 5A (Tc) 3.1W (Ta), 74W (Tc) Through Hole I2PAK

To learn about the specification of IRF830ALPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRF830ALPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRF830ALPBF.
We are offering IRF830ALPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRF830ALPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRF830AS,AL, SiHF830AS,AL
Standard Package	50
Manufacturer	Vishay Siliconix
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	500V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.4Ohm @ 3A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	620pF @ 25V
FET Feature	-
Power Dissipation (Max)	3.1W (Ta), 74W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	I2PAK
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
