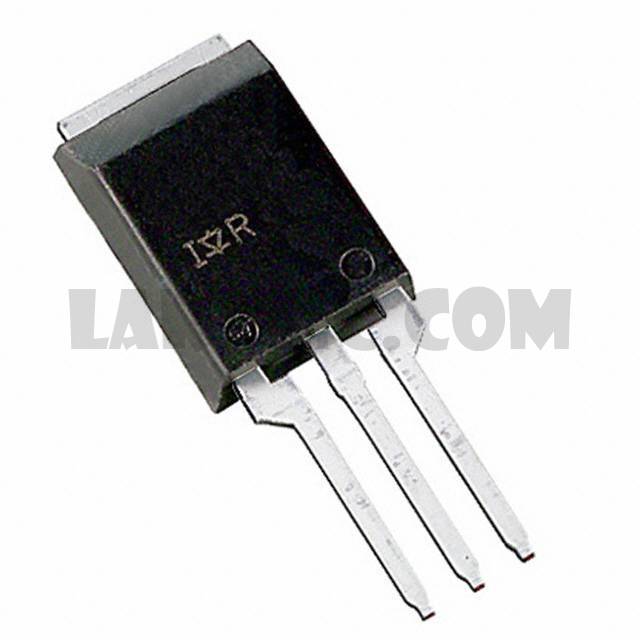

IRFBA90N20DPBF

IRFBA90N20DPBF

Part NumberIRFBA90N20DPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 200V 98A SUPER-220

DatasheetIRFBA90N20DPbF

Package / CaseSuper-220™-3 (Straight Leads)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 98A (Tc) 650W (Tc) Through Hole SUPER-220™ (TO-273AA)

To learn about the specification of IRFBA90N20DPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFBA90N20DPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFBA90N20DPBF.
We are offering IRFBA90N20DPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFBA90N20DPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFBA90N20DPbF
Standard Package	50
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200V
Current - Continuous Drain (Id) @ 25°C	98A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	23mOhm @ 59A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	240nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	6080pF @ 25V
FET Feature	-
Power Dissipation (Max)	650W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	SUPER-220™ (TO-273AA)
Package / Case	Super-220™-3 (Straight Leads)
