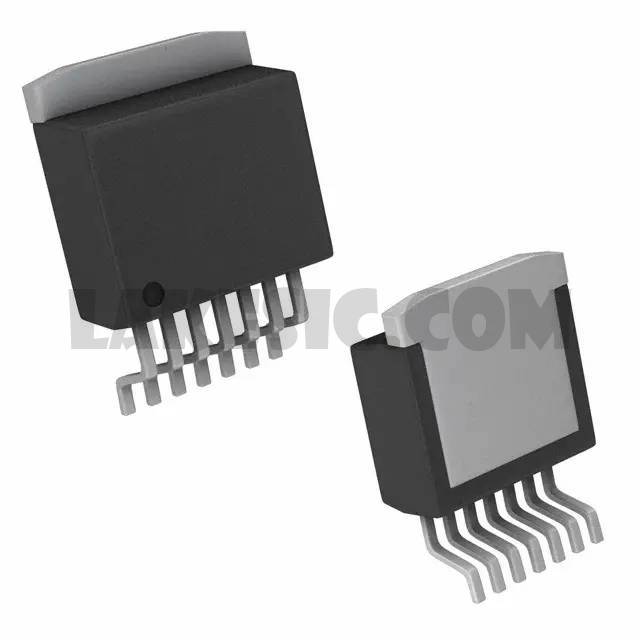

IRFS7437TRL7PP

IRFS7437TRL7PP

Part NumberIRFS7437TRL7PP

ManufacturerInfineon Technologies

DescriptionMOSFET N CH 40V 195A D2PAK-7PIN

DatasheetIRFS7437-7PPbF

Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 195A (Tc) 231W (Tc) Surface Mount D2PAK (7-Lead)

To learn about the specification of IRFS7437TRL7PP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRFS7437TRL7PP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRFS7437TRL7PP.
We are offering IRFS7437TRL7PP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRFS7437TRL7PP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRFS7437-7PPbF
Standard Package	800
Manufacturer	Infineon Technologies
Series	HEXFET®, StrongIRFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	1.4mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	225nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7437pF @ 25V
FET Feature	-
Power Dissipation (Max)	231W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	D2PAK (7-Lead)
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
