IRL7472L1TRPBF

IRL7472L1TRPBF

Part NumberIRL7472L1TRPBF

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 40V 375A

DatasheetIRL7472L1TRPbF

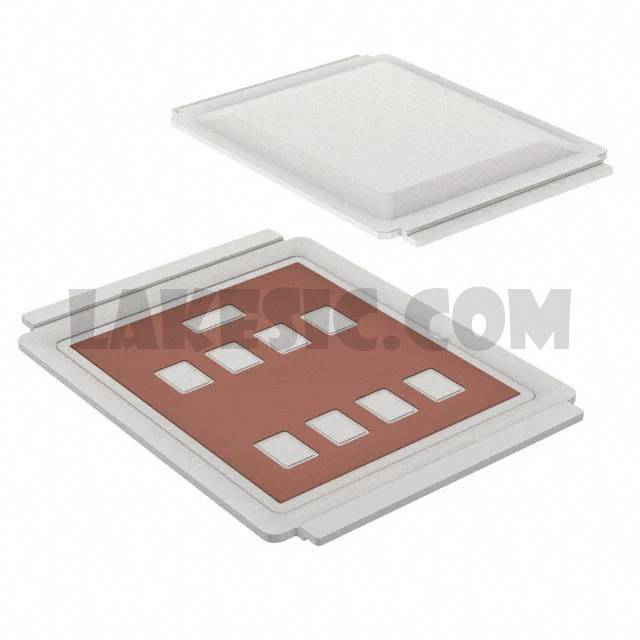

Package / CaseDirectFET™ Isometric L8

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 375A (Tc) 3.8W (Ta), 341W (Tc) Surface Mount DIRECTFET L8

To learn about the specification of IRL7472L1TRPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRL7472L1TRPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRL7472L1TRPBF.
We are offering IRL7472L1TRPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRL7472L1TRPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IRL7472L1TRPbF
Standard Package	4000
Manufacturer	Infineon Technologies
Series	StrongIRFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	375A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.59mOhm @ 195A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	330nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	20082pF @ 25V
FET Feature	-
Power Dissipation (Max)	3.8W (Ta), 341W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET L8
Package / Case	DirectFET™ Isometric L8
