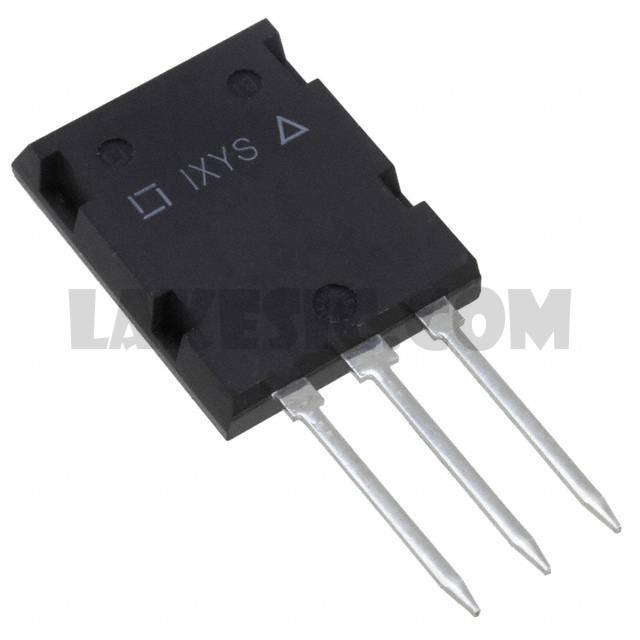

IXFL38N100Q2

IXFL38N100Q2

Part NumberIXFL38N100Q2

ManufacturerIXYS

DescriptionMOSFET N-CH 1000V 29A ISOPLUS264

DatasheetIXFL38N100Q2

Package / CaseISOPLUS264™

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1000V 29A (Tc) 380W (Tc) Through Hole ISOPLUS264™

To learn about the specification of IXFL38N100Q2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFL38N100Q2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFL38N100Q2.
We are offering IXFL38N100Q2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFL38N100Q2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFL38N100Q2
Standard Package	25
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	1000V
Current - Continuous Drain (Id) @ 25°C	29A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	280mOhm @ 19A, 10V
Vgs(th) (Max) @ Id	5.5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs	250nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	13500pF @ 25V
FET Feature	-
Power Dissipation (Max)	380W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISOPLUS264™
Package / Case	ISOPLUS264™
