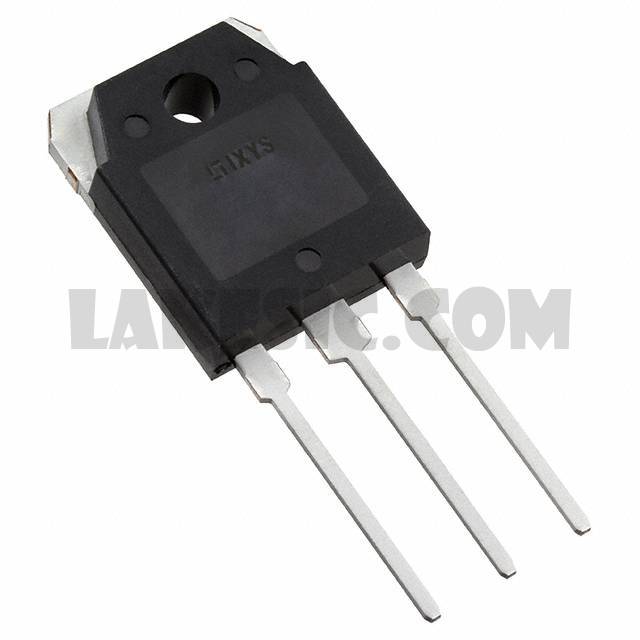

IXFQ120N25X3

IXFQ120N25X3

Part NumberIXFQ120N25X3

ManufacturerIXYS

DescriptionMOSFET N-CHANNEL 250V 120A TO3P

DatasheetIXFx120N25X3, IXFT120N25X3HV

Package / CaseTO-3P-3, SC-65-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 120A (Tc) 520W (Tc) Through Hole TO-3P

To learn about the specification of IXFQ120N25X3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXFQ120N25X3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXFQ120N25X3.
We are offering IXFQ120N25X3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IXFQ120N25X3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	IXFx120N25X3, IXFT120N25X3HV
Standard Package	30
Manufacturer	IXYS
Series	HiPerFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	12mOhm @ 60A, 10V
Vgs(th) (Max) @ Id	4.5V @ 4mA
Gate Charge (Qg) (Max) @ Vgs	122nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7870pF @ 25V
FET Feature	-
Power Dissipation (Max)	520W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-3P
Package / Case	TO-3P-3, SC-65-3
