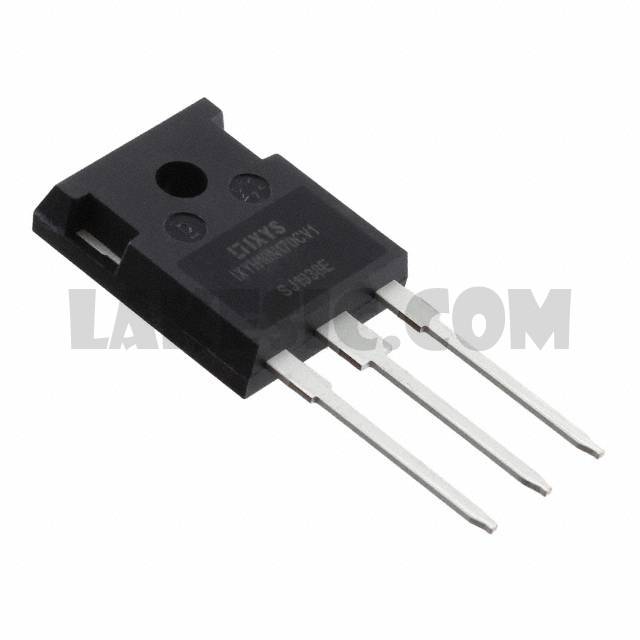

IXYH10N170CV1
IXYH10N170CV1
Part Number IXYH10N170CV1 Manufacturer IXYS Description IGBT 1.7KV 36A TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 1700V 36A 280W Through Hole TO-247 (IXYH)
To learn about the specification of IXYH10N170CV1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYH10N170CV1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYH10N170CV1.
We are offering IXYH10N170CV1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYH10N170CV1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYH10N170CV1 Standard Package 30 Manufacturer IXYS Series XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 1700V Current - Collector (Ic) (Max) 36A Current - Collector Pulsed (Icm) 84A Vce(on) (Max) @ Vge, Ic 3.8V @ 15V, 10A Power - Max 280W Switching Energy 1.4mJ (on), 700µJ (off) Input Type Standard Gate Charge 46nC Td (on/off) @ 25°C 14ns/130ns Test Condition 850V, 10A, 10Ohm, 15V Reverse Recovery Time (trr) 160ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247 (IXYH)
