IXYH50N120C3D1
IXYH50N120C3D1

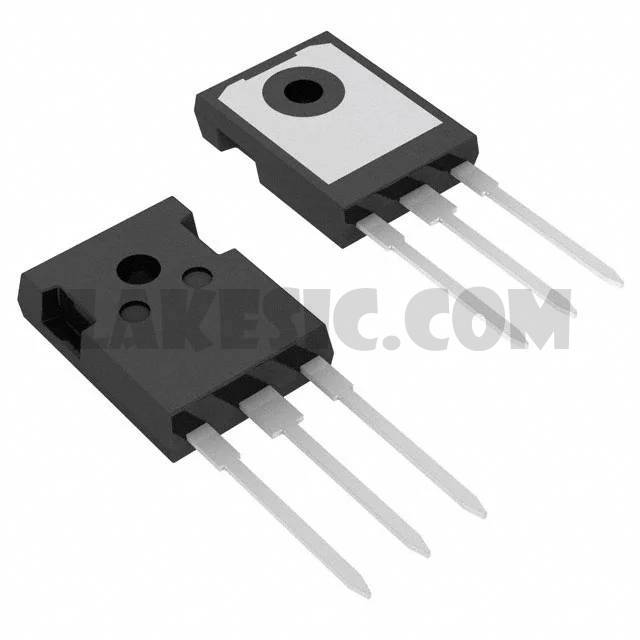

Part Number IXYH50N120C3D1 Manufacturer IXYS Description IGBT 1200V 90A 625W TO247 Package / Case TO-247-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT 1200V 90A 625W Through Hole TO-247 (IXYH)
To learn about the specification of IXYH50N120C3D1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IXYH50N120C3D1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IXYH50N120C3D1.
We are offering IXYH50N120C3D1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
IXYH50N120C3D1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet IXYH50N120C3D1 Standard Package 30 Manufacturer IXYS Series GenX3™, XPT™ Packaging Tube Part Status Active IGBT Type - Voltage - Collector Emitter Breakdown (Max) 1200V Current - Collector (Ic) (Max) 90A Current - Collector Pulsed (Icm) 210A Vce(on) (Max) @ Vge, Ic 4V @ 15V, 50A Power - Max 625W Switching Energy 3mJ (on), 1mJ (off) Input Type Standard Gate Charge 142nC Td (on/off) @ 25°C 28ns/133ns Test Condition 600V, 50A, 5Ohm, 15V Reverse Recovery Time (trr) 195ns Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-247-3 Supplier Device Package TO-247 (IXYH)
