Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LGG Series
Standard Package	200
Manufacturer	Nichicon
Series	LGG
Packaging	Bulk
Part Status	Active
Capacitance	390µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.55A @ 120Hz
Ripple Current @ High Frequency	2.2165A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

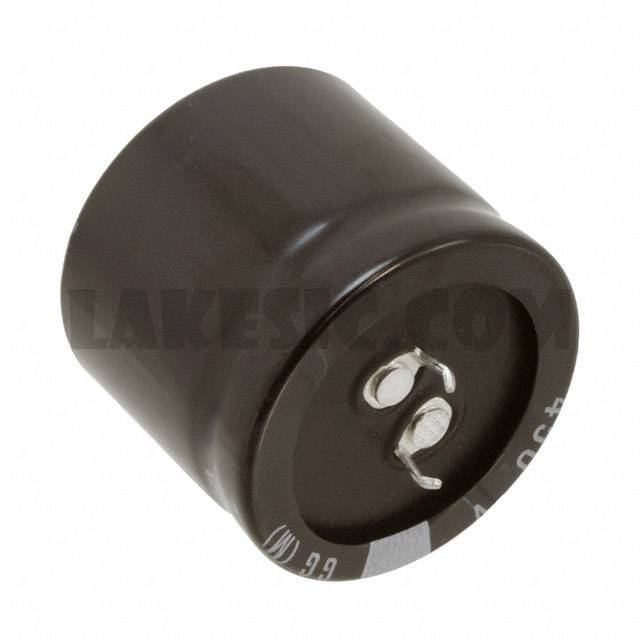

Package / Case	Radial, Can - Snap-In

LGG2G471MELC30	Nichicon, 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E561MELA35	Nichicon, 560µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E471MELA30	Nichicon, 470µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2C272MELC40	Nichicon, 2700µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2C102MELZ40	Nichicon, 1000µF 160V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGGW6181MELZ35	Nichicon, 180µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D681MELZ35	Nichicon, 680µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D222MELB50	Nichicon, 2200µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2D152MELB40	Nichicon, 1500µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2E391MELA25	Nichicon, 390µF 250V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2Z272MELC45	Nichicon, 2700µF 180V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View
LGG2G102MELC50	Nichicon, 1000µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C, LGG	View

LGG2G391MELC30

Part NumberLGG2G391MELC30
