NGTG15N60S1EG
NGTG15N60S1EG

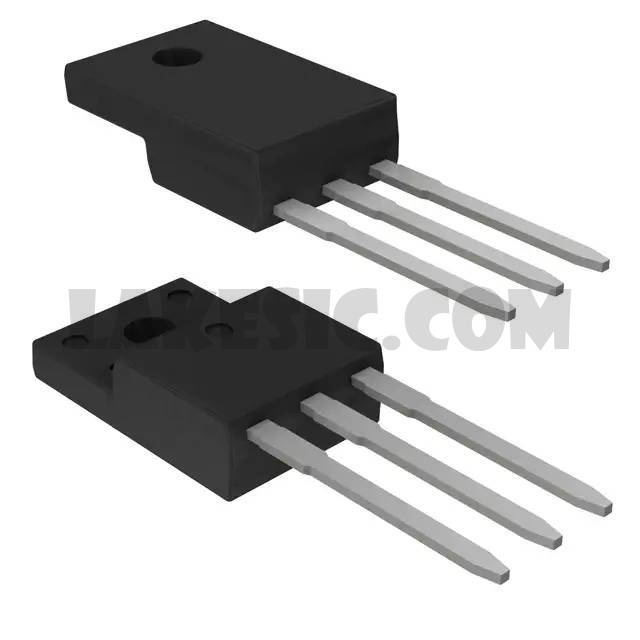

Part Number NGTG15N60S1EG Description IGBT 600V 30A 117W TO220-3 Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT NPT 600V 30A 117W Through Hole TO-220
To learn about the specification of NGTG15N60S1EG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NGTG15N60S1EG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NGTG15N60S1EG.
We are offering NGTG15N60S1EG for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
NGTG15N60S1EG - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet NGTG15N60S1EG Standard Package 50 Manufacturer ON Semiconductor Series - Packaging Tube Part Status Active IGBT Type NPT Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 30A Current - Collector Pulsed (Icm) 120A Vce(on) (Max) @ Vge, Ic 1.7V @ 15V, 15A Power - Max 117W Switching Energy 550µJ (on), 350µJ (off) Input Type Standard Gate Charge 88nC Td (on/off) @ 25°C 65ns/170ns Test Condition 400V, 15A, 22Ohm, 15V Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Package / Case TO-220-3 Supplier Device Package TO-220
