NTD4904NT4G
NTD4904NT4G
Part Number NTD4904NT4G
Description MOSFET N-CH 30V 13A SGL DPAK

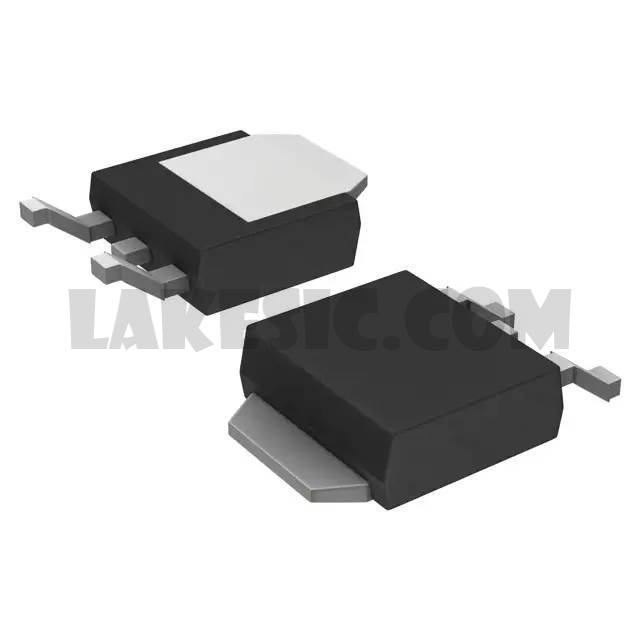

Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 30V 13A (Ta), 79A (Tc) 1.4W (Ta), 52W (Tc) Surface Mount DPAK
To learn about the specification of NTD4904NT4G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTD4904NT4G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTD4904NT4G.
We are offering NTD4904NT4G for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
NTD4904NT4G - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet NTD4904N
Standard Package 1
Manufacturer ON Semiconductor
Series -
Packaging Cut Tape (CT)
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 13A (Ta), 79A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Rds On (Max) @ Id, Vgs 3.7mOhm @ 30A, 10V
Vgs(th) (Max) @ Id 2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 41nC @ 10V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 3052pF @ 15V
FET Feature -
Power Dissipation (Max) 1.4W (Ta), 52W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Supplier Device Package DPAK
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
