NTMFS08N003C

NTMFS08N003C

Part NumberNTMFS08N003C

ManufacturerON Semiconductor

DescriptionPTNG 80/20V IN 5X6CLIP

DatasheetNTMFS08N003C

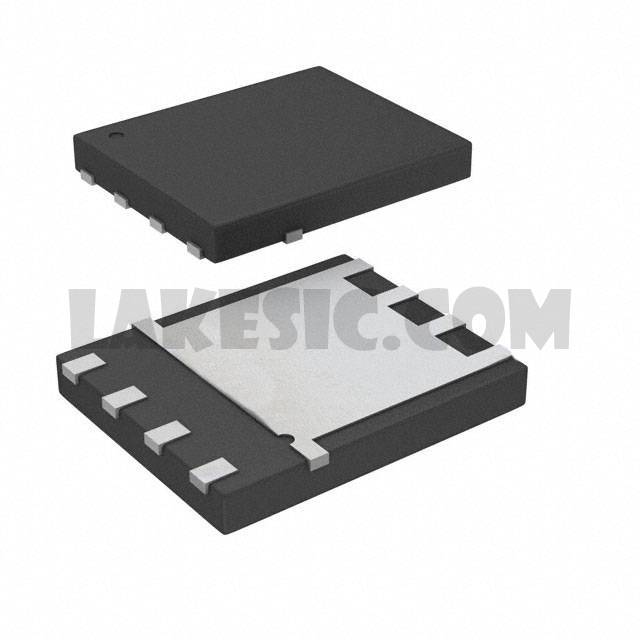

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 80V 22A (Ta), 147A (Tc) 2.7W (Ta), 125W (Tc) Surface Mount Power56

To learn about the specification of NTMFS08N003C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTMFS08N003C with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTMFS08N003C.
We are offering NTMFS08N003C for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTMFS08N003C - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTMFS08N003C
Standard Package	1
Manufacturer	ON Semiconductor
Series	PowerTrench®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	80V
Current - Continuous Drain (Id) @ 25°C	22A (Ta), 147A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.1mOhm @ 56A, 10V
Vgs(th) (Max) @ Id	4V @ 310µA
Gate Charge (Qg) (Max) @ Vgs	73nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5350pF @ 40V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Power56
Package / Case	8-PowerTDFN
