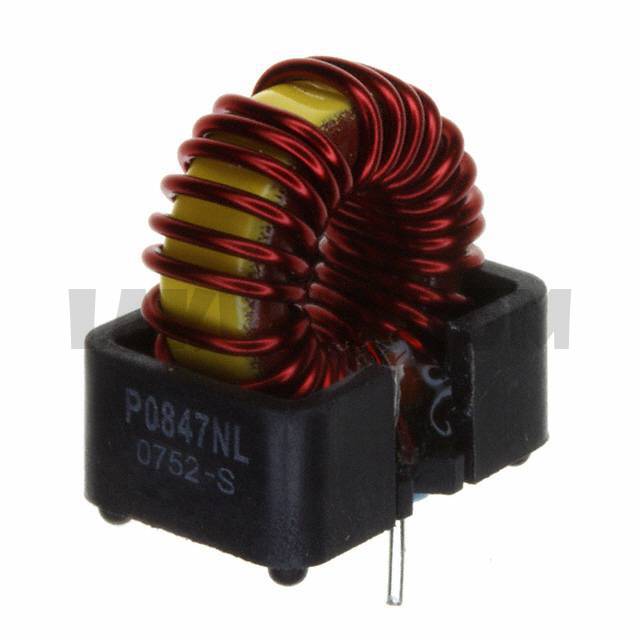

P0847NL

P0847NL

Part NumberP0847NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 10UH 5A 25 MOHM TH

DatasheetP08_NL THT/SMT Pwr Switcher Inductors

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10µH Shielded Toroidal Inductor 5A 25mOhm Radial, Vertical (Open)

To learn about the specification of P0847NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add P0847NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of P0847NL.
We are offering P0847NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

P0847NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	P08_NL THT/SMT Pwr Switcher Inductors
Standard Package	80
Manufacturer	Pulse Electronics Power
Series	KlipMount™
Packaging	Tube
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	10µH
Tolerance	±20%
Current Rating (Amps)	5A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	25mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	0.830" L x 0.450" W (21.08mm x 11.43mm)
Height - Seated (Max)	0.700" (17.78mm)
