PE-92106NL

PE-92106NL

Part NumberPE-92106NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 285UH 3A 140 MOHM TH

DatasheetToroid Vert/Low Profile KlipMount

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

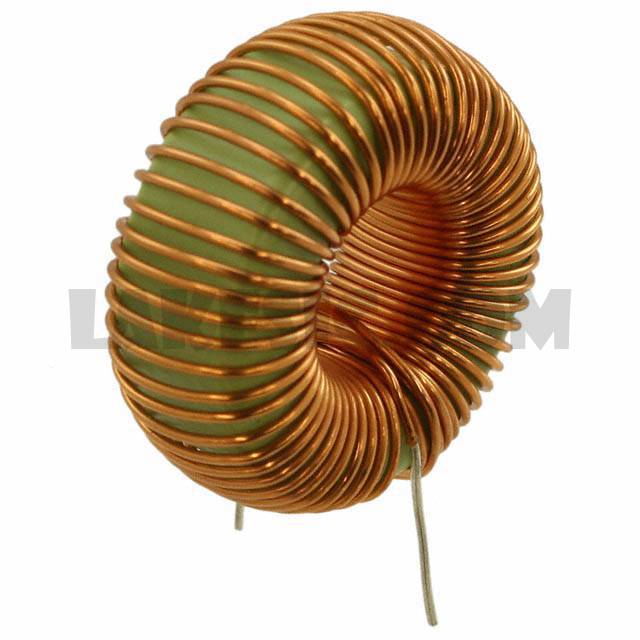

Detailed Description285µH Unshielded Toroidal Inductor 3A 140mOhm Max Radial, Vertical (Open)

To learn about the specification of PE-92106NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-92106NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-92106NL.
We are offering PE-92106NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-92106NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Toroid Vert/Low Profile KlipMount
Standard Package	42
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	285µH
Tolerance	±20%
Current Rating (Amps)	3A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	140mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Inductance Frequency - Test	20kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	-
Size / Dimension	1.400" Dia x 0.700" W (35.56mm x 17.78mm)
Height - Seated (Max)	-
