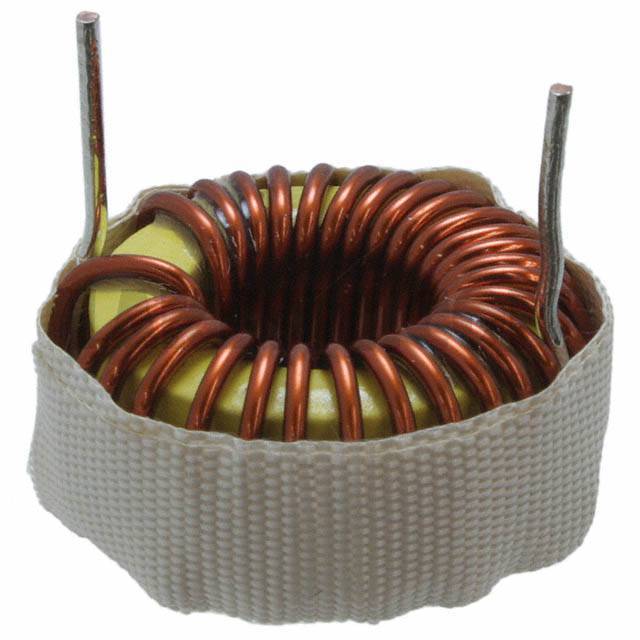

PE-92414NL

PE-92414NL

Part NumberPE-92414NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 35.6UH 5A 23 MOHM TH

DatasheetToroid Vert/Low Profile KlipMount

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description35.6µH Unshielded Toroidal Inductor 5A 23mOhm Max Radial, Horizontal (Open)

To learn about the specification of PE-92414NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-92414NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-92414NL.
We are offering PE-92414NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-92414NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Toroid Vert/Low Profile KlipMount
Standard Package	50
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tray
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	35.6µH
Tolerance	±20%
Current Rating (Amps)	5A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	23mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Inductance Frequency - Test	20kHz
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Horizontal (Open)
Supplier Device Package	-
Size / Dimension	1.050" Dia (26.67mm)
Height - Seated (Max)	0.550" (13.97mm)
