PA2756NL
PA2756NL

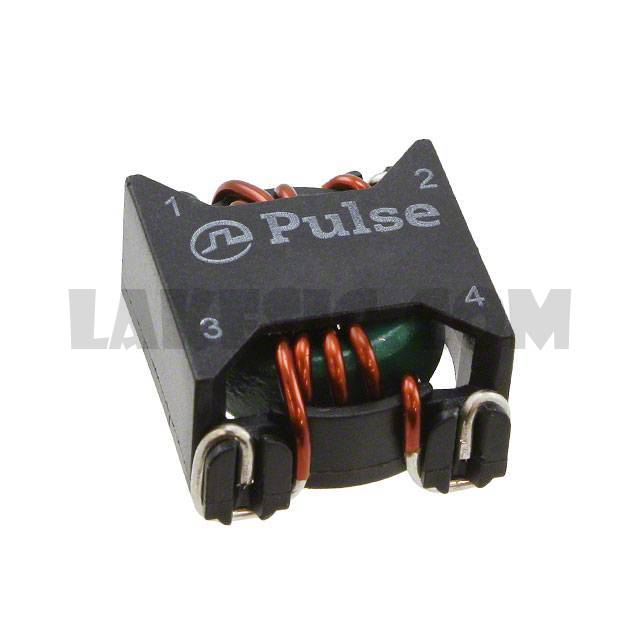

Part Number PA2756NL Description COMMON MODE CHOKE 8A 2LN SMD Package / Case Horizontal, 4 PC PadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 8A DCR 7.7mOhm
To learn about the specification of PA2756NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PA2756NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PA2756NL.
We are offering PA2756NL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PA2756NL - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet PAyyyyNL Datasheet Standard Package 30 Manufacturer Pulse Electronics Power Series - Packaging Tube Part Status Active Filter Type Power Line Number of Lines 2 Current Rating (Max) 8A DC Resistance (DCR) (Max) 7.7mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 130°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.670" L x 0.770" W (17.02mm x 19.56mm) Height (Max) 0.390" (9.91mm) Package / Case Horizontal, 4 PC Pad
