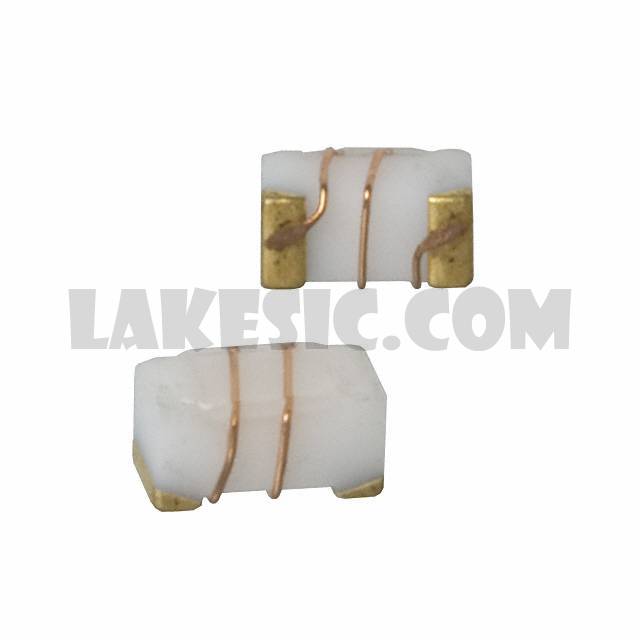

PE-0603CD100JTT

PE-0603CD100JTT

Part NumberPE-0603CD100JTT

ManufacturerPulse Electronics Network

DescriptionFIXED IND 10NH 700MA 130 MOHM

DatasheetRF Chip Inductors

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10nH Unshielded Wirewound Inductor 700mA 130mOhm Max 0603 (1608 Metric)

To learn about the specification of PE-0603CD100JTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-0603CD100JTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-0603CD100JTT.
We are offering PE-0603CD100JTT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-0603CD100JTT - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RF Chip Inductors
Standard Package	2000
Manufacturer	Pulse Electronics Network
Series	0603CD
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	10nH
Tolerance	±5%
Current Rating (Amps)	700mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	130mOhm Max
Q @ Freq	30 @ 250MHz
Frequency - Self Resonant	4.8GHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	250MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.071" L x 0.049" W (1.80mm x 1.24mm)
Height - Seated (Max)	0.040" (1.02mm)
