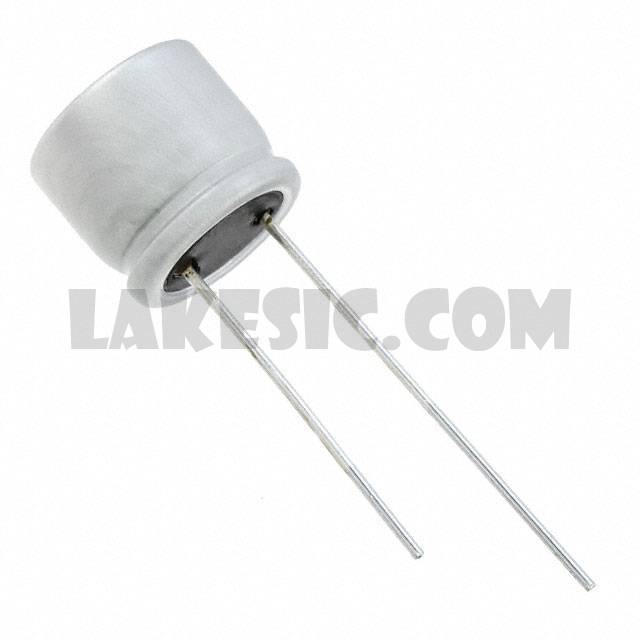

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLF Series
Standard Package	500
Manufacturer	Nichicon
Series	PLF
Packaging	Tape & Box (TB)
Part Status	Active
Type	Polymer
Capacitance	68µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	40mOhm
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.6A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLF1E220MCL7TD	Nichicon, 22µF 25V Aluminum Polymer Capacitor Radial, Can 50mOhm 2000 Hrs @ 105°C, PLF	View
PLF1E100MCL7TP	Nichicon, 10µF 25V Aluminum Polymer Capacitor Radial, Can 65mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MCO8TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1C101MDL4TD	Nichicon, 100µF 16V Aluminum Polymer Capacitor Radial, Can 24mOhm 2000 Hrs @ 105°C, PLF	View
PLF0J471MCO6	Nichicon, 470µF 6.3V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G271MDL4TD	Nichicon, 270µF 4V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View
PLF1A151MDL4TD	Nichicon, 150µF 10V Aluminum Polymer Capacitor Radial, Can 25mOhm 2000 Hrs @ 105°C, PLF	View
PLF0G561MCO6TD	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E152MDO6TD	Nichicon, 1500µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MCO6TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View
PLF1D151MDO2TD	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can 20mOhm 2000 Hrs @ 105°C, PLF	View
PLF0E821MCO6	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 2000 Hrs @ 105°C, PLF	View

PLF1D680MCL2TD

Part NumberPLF1D680MCL2TD
