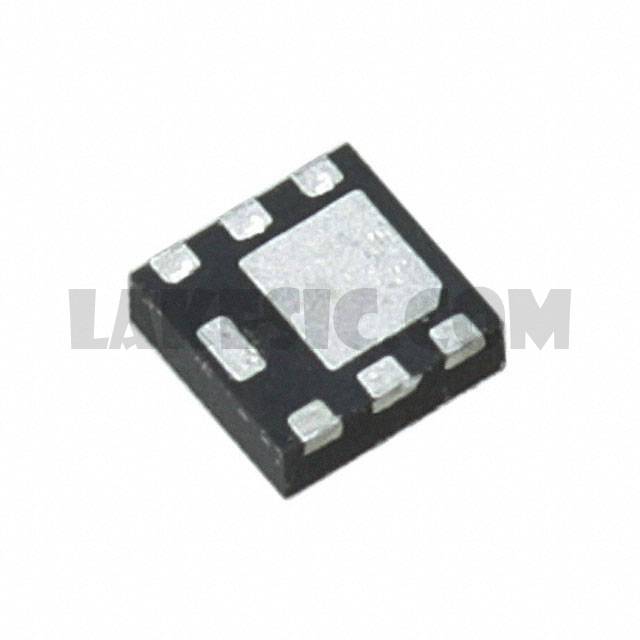

PMPB23XNEZ

PMPB23XNEZ

Part NumberPMPB23XNEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 20V 7A 6DFN2020MD

DatasheetPMPB23XNE

Package / Case6-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 20V 7A (Ta) 1.7W (Ta) Surface Mount 6-DFN2020MD (2x2)

To learn about the specification of PMPB23XNEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMPB23XNEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMPB23XNEZ.
We are offering PMPB23XNEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMPB23XNEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMPB23XNE
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	22mOhm @ 7A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	17nC @ 10V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	1136pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN2020MD (2x2)
Package / Case	6-UDFN Exposed Pad
