PSMN4R2-30MLDX

PSMN4R2-30MLDX

Part NumberPSMN4R2-30MLDX

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 30V 70A LFPAK33

DatasheetPSMN4R2-30MLD

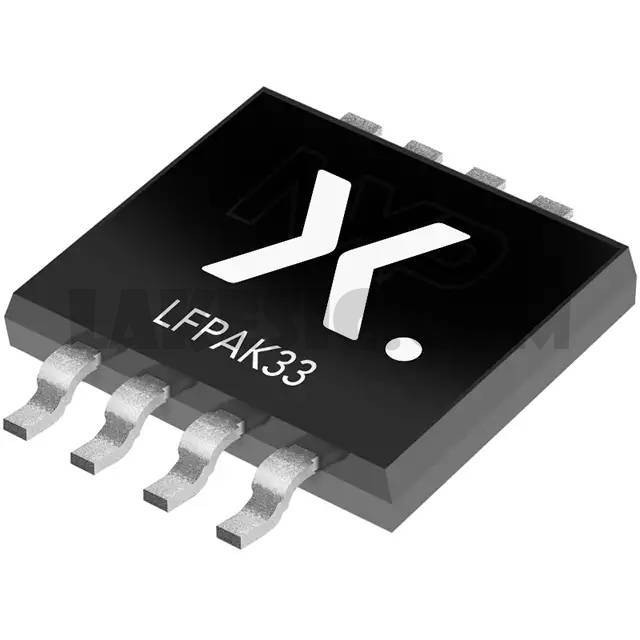

Package / CaseSOT-1210, 8-LFPAK33

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 70A (Tc) 65W (Tc) Surface Mount LFPAK33

To learn about the specification of PSMN4R2-30MLDX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PSMN4R2-30MLDX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PSMN4R2-30MLDX.
We are offering PSMN4R2-30MLDX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PSMN4R2-30MLDX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN4R2-30MLD
Standard Package	1500
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	29.3nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1795pF @ 15V
FET Feature	Schottky Diode (Body)
Power Dissipation (Max)	65W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK33
Package / Case	SOT-1210, 8-LFPAK33
