Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	1800
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max)	0.358" (9.10mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75PI31004030J	KEMET, 0.1µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75MN41504030J	KEMET, 1.5µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75QD1470Z330J	KEMET, 4700pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75TI1560AA30J	KEMET, 5600pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75TI1680DQ30J	KEMET, 6800pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75GI3220AA00J	KEMET, 0.22µF Film Capacitor 90V 160V Polypropylene (PP), Metallized Radial, R75	View
R75IR48204040J	KEMET, 8.2µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75PD1680Z340J	KEMET, 6800pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75QR41004000J	KEMET, 1µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75UI22204030J	KEMET, 0.022µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75RN31004030J	KEMET, 0.1µF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial, R75	View
R75MD2330Z3B0J	KEMET, 0.033µF Film Capacitor 200V 400V Polypropylene (PP), Metallized Radial, R75	View

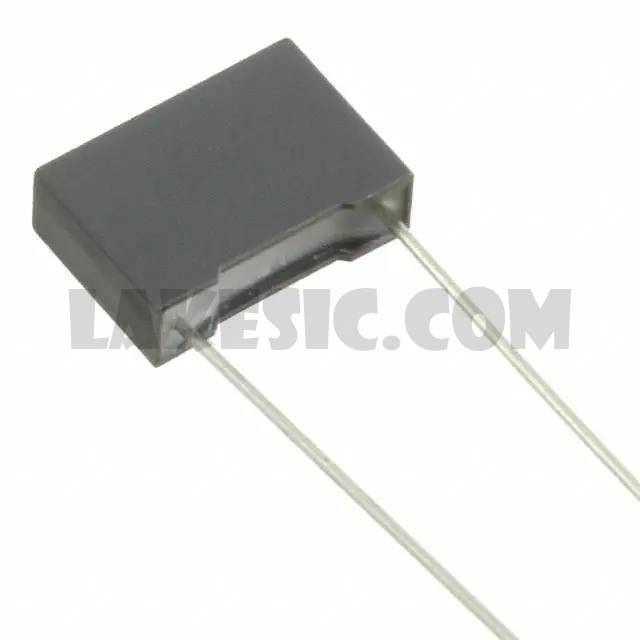

R75PF21004030J

Part NumberR75PF21004030J
