Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	480
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.68µF
Tolerance	±5%
Voltage Rating - AC	400V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.260" L x 0.512" W (32.00mm x 13.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76PR3470SE30J	KEMET, 0.47µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76TR33304030J	KEMET, 0.33µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76QW41004030J	KEMET, 1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MR4100SE40K	KEMET, 1µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QD0470SE00K	KEMET, 470pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TN23304040J	KEMET, 0.033µF Film Capacitor 650V 1500V (1.5kV) Polypropylene (PP), Metallized Radial, R76	View
R76QW3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QN31004030J	KEMET, 0.1µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR32204030J	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76QR3220SE30K	KEMET, 0.22µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76MI32204030J	KEMET, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial, R76	View
R76QF11504000K	KEMET, 1500pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View

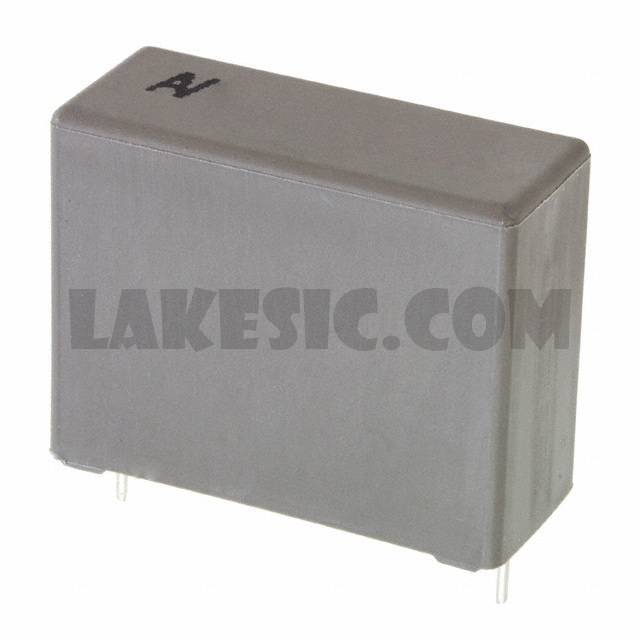

R76PR3680SE40J

Part NumberR76PR3680SE40J
