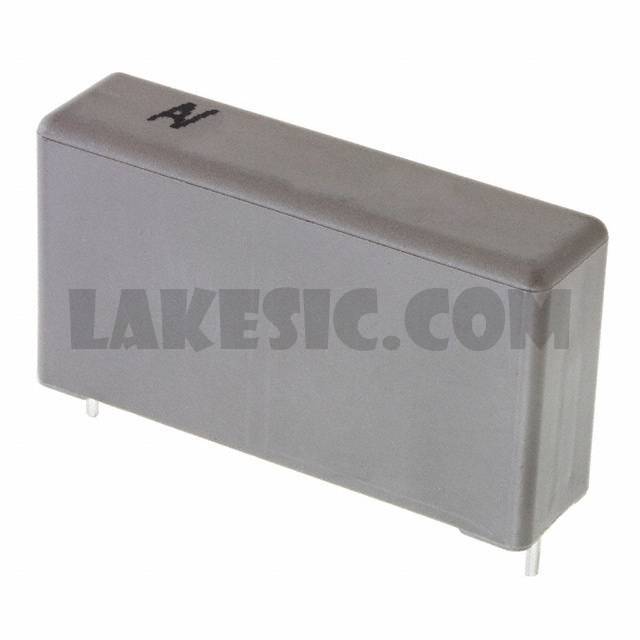

Categories	Capacitors / Film Capacitors
Datasheet	R76 Series
Standard Package	420
Manufacturer	KEMET
Series	R76
Packaging	Bulk
Part Status	Active
Capacitance	0.22µF
Tolerance	±10%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.634" L x 0.433" W (41.50mm x 11.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	High Frequency, Switching; High Pulse, DV/DT
Ratings	-
Features	-

R76PF1680SE00K	KEMET, 6800pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QI21504040K	KEMET, 0.015µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI14704040J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QI23305040J	KEMET, 0.033µF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76UN24704040J	KEMET, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76II3220SE30K	KEMET, 0.22µF Film Capacitor 180V 250V Polypropylene (PP), Metallized Radial, R76	View
R76PR41004030J	KEMET, 1µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View
R76QF14704030J	KEMET, 4700pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76TR33304030J	KEMET, 0.33µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R76	View
R76UI01004040J	KEMET, 100pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R76	View
R76QD0470SE00K	KEMET, 470pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R76	View
R76PF21004030J	KEMET, 10000pF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial, R76	View

R76QW3220SE30K

Part NumberR76QW3220SE30K
