RB8532-16-1M3
RB8532-16-1M3

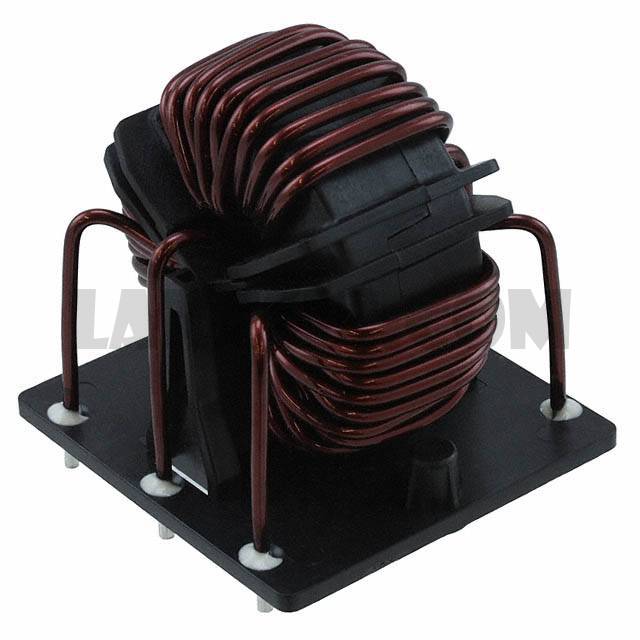

Part Number RB8532-16-1M3 Description CMC 1.3MH 16A 3LN TH Package / Case Vertical, 6 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1.3mH @ 1kHz 3 Line Common Mode Choke Through Hole 16A DCR 5.7mOhm (Typ)
To learn about the specification of RB8532-16-1M3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB8532-16-1M3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB8532-16-1M3.
We are offering RB8532-16-1M3 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB8532-16-1M3 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 64 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 3 Inductance @ Frequency 1.3mH @ 1kHz Current Rating (Max) 16A DC Resistance (DCR) (Max) 5.7mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.283" L x 2.165" W (58.00mm x 55.00mm) Height (Max) 2.283" (58.00mm) Package / Case Vertical, 6 PC Pin
