RB6132-16-0M8
RB6132-16-0M8

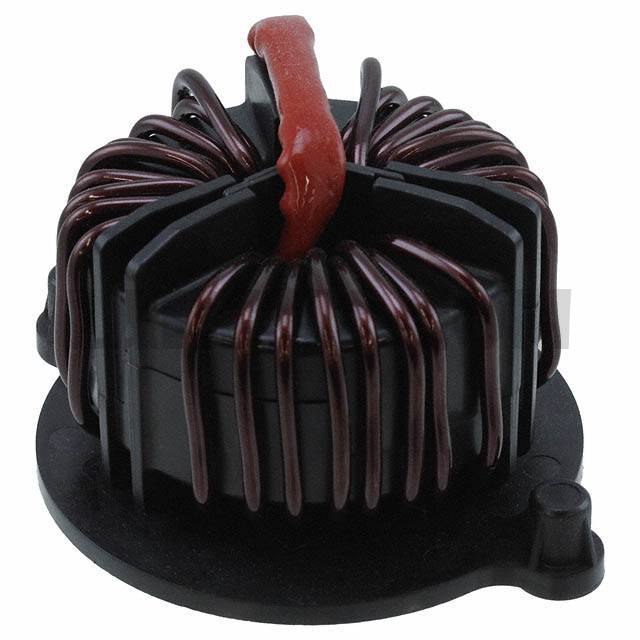

Part Number RB6132-16-0M8 Description CMC 800UH 16A 3LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 800µH @ 400Hz 3 Line Common Mode Choke Through Hole 16A DCR 4.6mOhm (Typ)
To learn about the specification of RB6132-16-0M8, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB6132-16-0M8 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB6132-16-0M8.
We are offering RB6132-16-0M8 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB6132-16-0M8 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 64 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 3 Inductance @ Frequency 800µH @ 400Hz Current Rating (Max) 16A DC Resistance (DCR) (Max) 4.6mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.315" L x 2.276" W (58.80mm x 57.80mm) Height (Max) 1.890" (48.00mm) Package / Case Horizontal, 4 PC Pin
