RB8522-25-2M0
RB8522-25-2M0

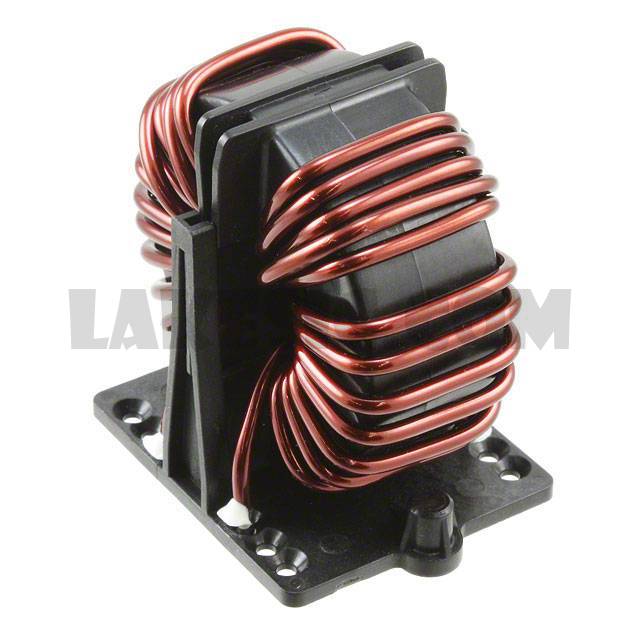

Part Number RB8522-25-2M0 Description COMMON MODE CHOKE 2MH 25A 2LN TH Package / Case Vertical, 8 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2mH @ 1kHz 2 Line Common Mode Choke Through Hole 25A DCR 4.2mOhm (Typ)
To learn about the specification of RB8522-25-2M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB8522-25-2M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB8522-25-2M0.
We are offering RB8522-25-2M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB8522-25-2M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 40 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 2mH @ 1kHz Current Rating (Max) 25A DC Resistance (DCR) (Max) 4.2mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.165" L x 1.807" W (55.00mm x 45.90mm) Height (Max) 2.677" (68.00mm) Package / Case Vertical, 8 PC Pin
