RB6132-36-0M4
RB6132-36-0M4

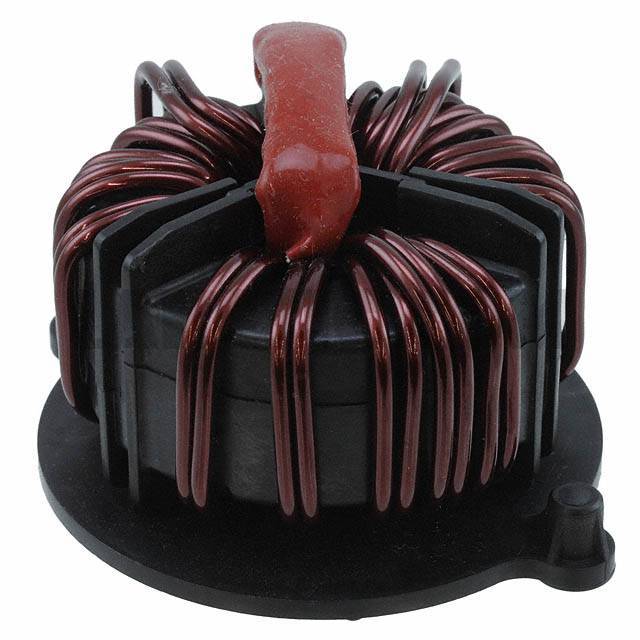

Part Number RB6132-36-0M4 Description CMC 420UH 36A 3LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 420µH @ 400Hz 3 Line Common Mode Choke Through Hole 36A DCR 1.4mOhm (Typ)
To learn about the specification of RB6132-36-0M4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB6132-36-0M4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB6132-36-0M4.
We are offering RB6132-36-0M4 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB6132-36-0M4 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 32 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 3 Inductance @ Frequency 420µH @ 400Hz Current Rating (Max) 36A DC Resistance (DCR) (Max) 1.4mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 2.673" L x 2.634" W (67.90mm x 66.90mm) Height (Max) 2.047" (52.00mm) Package / Case Horizontal, 4 PC Pin
