RB6522-25-0M6
RB6522-25-0M6

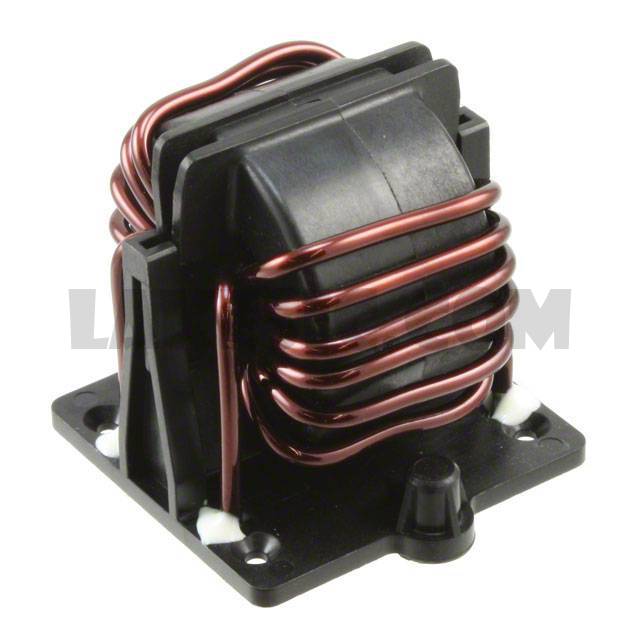

Part Number RB6522-25-0M6 Description CMC 640UH 25A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 640µH @ 400Hz 2 Line Common Mode Choke Through Hole 25A DCR 2.6mOhm (Typ)
To learn about the specification of RB6522-25-0M6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB6522-25-0M6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB6522-25-0M6.
We are offering RB6522-25-0M6 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB6522-25-0M6 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 50 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 640µH @ 400Hz Current Rating (Max) 25A DC Resistance (DCR) (Max) 2.6mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.846" L x 1.772" W (46.90mm x 45.00mm) Height (Max) 2.047" (52.00mm) Package / Case Vertical, 4 PC Pin
