RB6522-16-1M0
RB6522-16-1M0

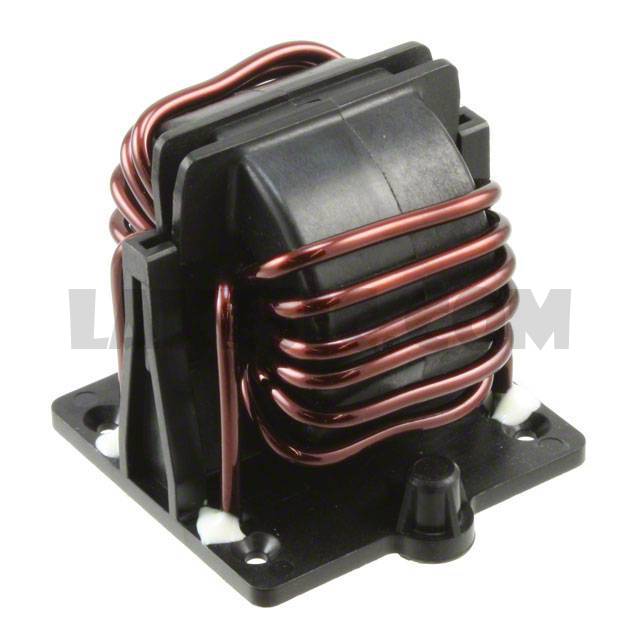

Part Number RB6522-16-1M0 Description COMMON MODE CHOKE 1MH 16A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1mH @ 400Hz 2 Line Common Mode Choke Through Hole 16A DCR 4.6mOhm (Typ)
To learn about the specification of RB6522-16-1M0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB6522-16-1M0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB6522-16-1M0.
We are offering RB6522-16-1M0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
RB6522-16-1M0 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet RB Series Datasheet Standard Package 50 Manufacturer Schaffner EMC Inc. Series RB Packaging Bulk Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1mH @ 400Hz Current Rating (Max) 16A DC Resistance (DCR) (Max) 4.6mOhm (Typ) Voltage Rating - DC 1000V (1kV) Voltage Rating - AC 600V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.846" L x 1.772" W (46.90mm x 45.00mm) Height (Max) 2.047" (52.00mm) Package / Case Vertical, 4 PC Pin
