Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single

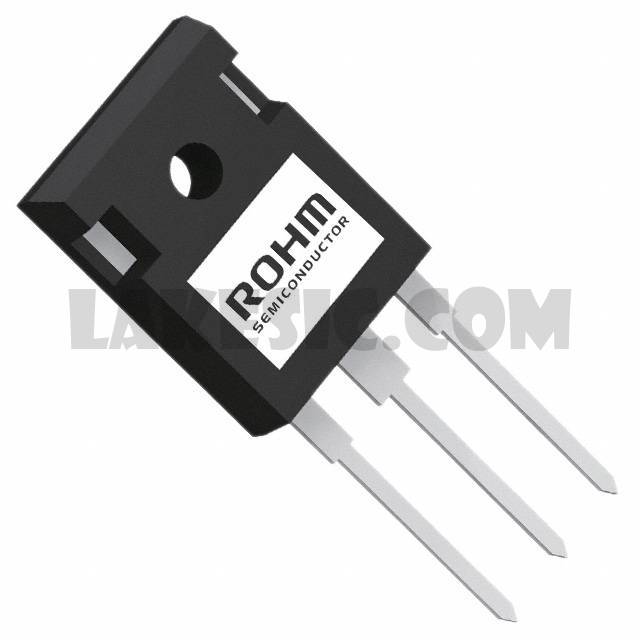

Datasheet	RGT80TS65D
Standard Package	30
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tube
Part Status	Active
IGBT Type	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max)	650V
Current - Collector (Ic) (Max)	70A
Current - Collector Pulsed (Icm)	120A
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 40A
Power - Max	234W
Switching Energy	-
Input Type	Standard
Gate Charge	79nC
Td (on/off) @ 25°C	34ns/119ns
Test Condition	400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr)	58ns
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-247-3
Supplier Device Package	TO-247N
