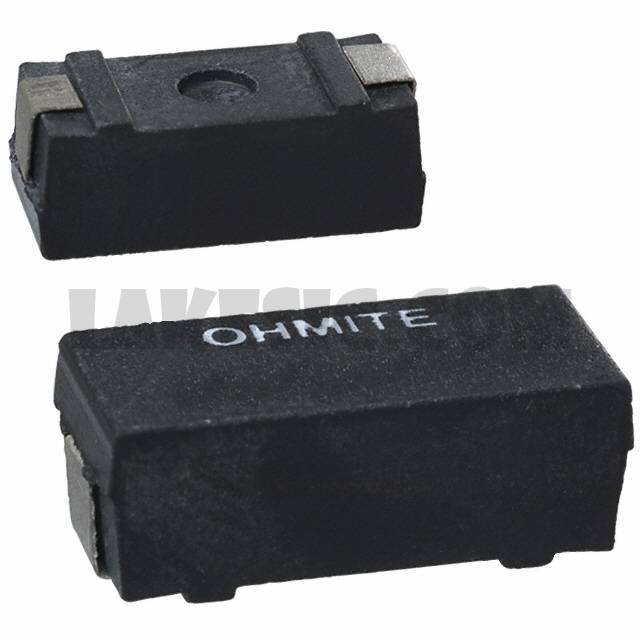

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	Surface Mount Power
Standard Package	100
Manufacturer	Ohmite
Series	RW
Packaging	Bulk
Part Status	Active
Resistance	1 Ohms
Tolerance	±5%
Power (Watts)	3W
Composition	Wirewound
Features	Current Sense
Temperature Coefficient	±50ppm/°C
Operating Temperature	-55°C ~ 150°C
Package / Case	6327 J-Lead
Supplier Device Package	SMD J-Lead, Recessed
Size / Dimension	0.625" L x 0.273" W (15.88mm x 6.93mm)
Height - Seated (Max)	0.231" (5.87mm)
Number of Terminations	2
Failure Rate	-
