SSM3J15FU,LF

SSM3J15FU,LF

Part NumberSSM3J15FU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET P-CH 30V 0.1A USM

DatasheetSSM3J15FU

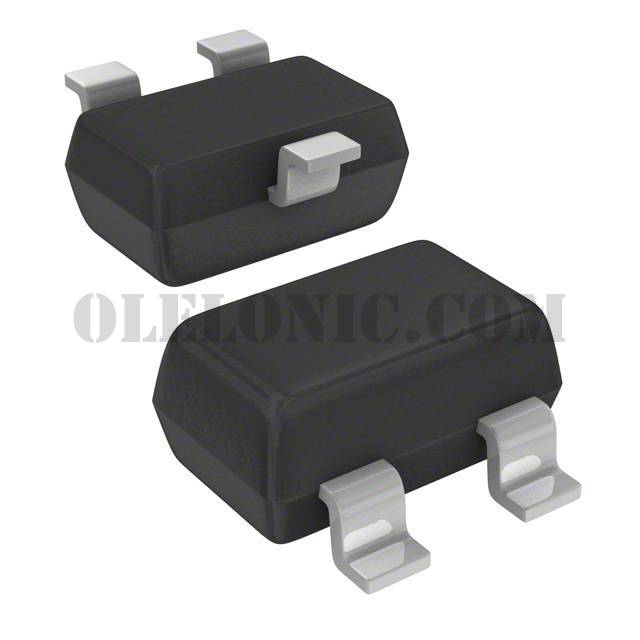

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 30V 100mA (Ta) 150mW (Ta) Surface Mount USM

To learn about the specification of SSM3J15FU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3J15FU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3J15FU,LF.
We are offering SSM3J15FU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3J15FU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3J15FU
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	π-MOSVI
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4V
Rds On (Max) @ Id, Vgs	12Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id	1.7V @ 100µA
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9.1pF @ 3V
FET Feature	-
Power Dissipation (Max)	150mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	USM
Package / Case	SC-70, SOT-323
