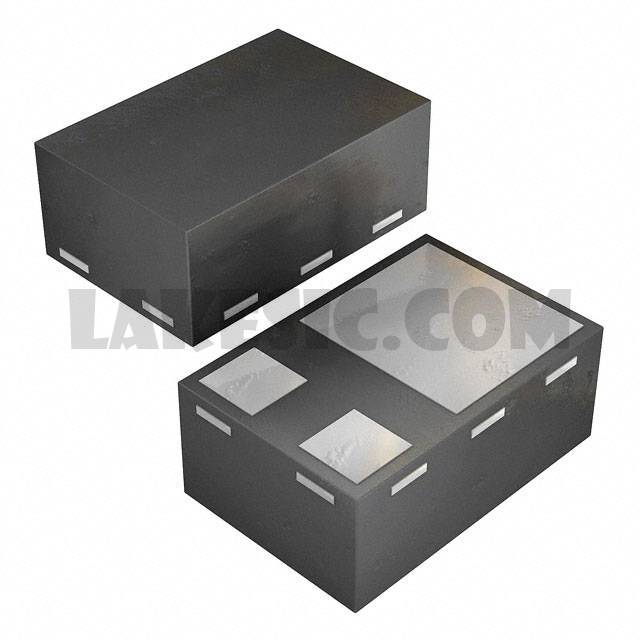

SSM3K59CTB,L3F

SSM3K59CTB,L3F

Part NumberSSM3K59CTB,L3F

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET N-CH 40V 2A CST3B

DatasheetSSM3K59CTB

Package / Case3-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 2A (Ta) 1W (Ta) Surface Mount CST3B

To learn about the specification of SSM3K59CTB,L3F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3K59CTB,L3F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3K59CTB,L3F.
We are offering SSM3K59CTB,L3F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3K59CTB,L3F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3K59CTB
Standard Package	10000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVII-H
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 8V
Rds On (Max) @ Id, Vgs	215mOhm @ 1A, 8V
Vgs(th) (Max) @ Id	1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.1nC @ 4.2V
Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	130pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	CST3B
Package / Case	3-SMD, No Lead
