SSM6J512NU,LF

SSM6J512NU,LF

Part NumberSSM6J512NU,LF

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET P-CH 12V 10A UDFN6B

DatasheetSSM6J512NU

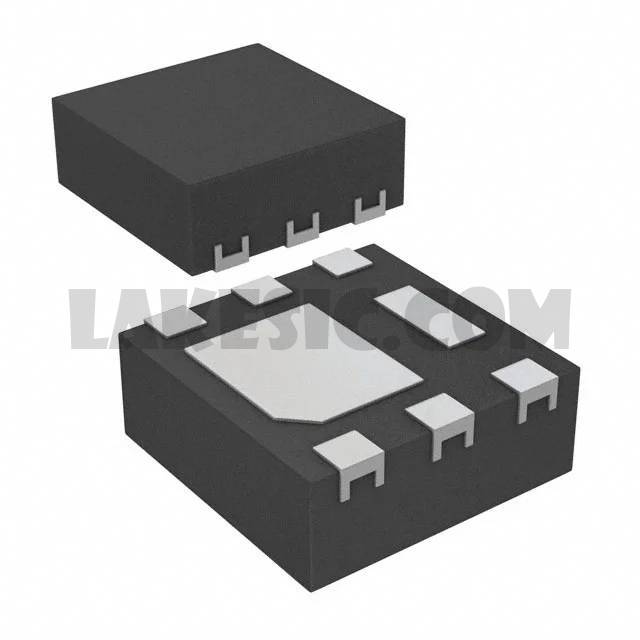

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 10A (Ta) 1.25W (Ta) Surface Mount 6-UDFNB (2x2)

To learn about the specification of SSM6J512NU,LF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM6J512NU,LF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM6J512NU,LF.
We are offering SSM6J512NU,LF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM6J512NU,LF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM6J512NU
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVII
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 8V
Rds On (Max) @ Id, Vgs	16.2mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	19.5nC @ 4.5V
Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 6V
FET Feature	-
Power Dissipation (Max)	1.25W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-UDFNB (2x2)
Package / Case	6-WDFN Exposed Pad
